Einsatz

Zur Befestigung von Rohrleitungen in versorgungstechnischen Anlagen. In Kombination mit der Anschlussmutter NT 3G ist bei den Größen bis 303 mm eine Abhängung für weitere Rohrschellen möglich.

Lieferumfang

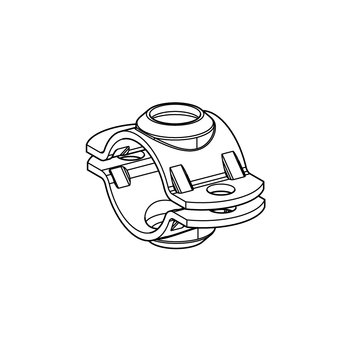

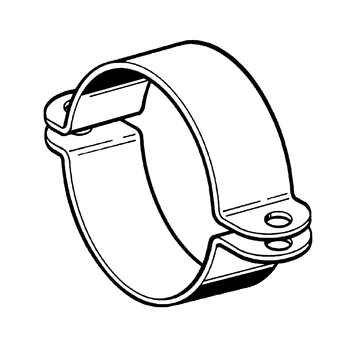

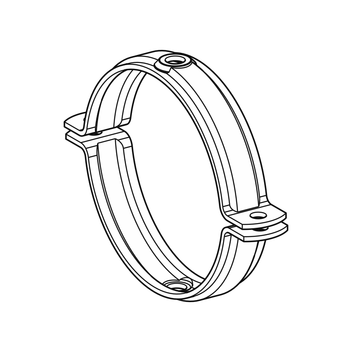

Zweiteilige Rohrschelle, ohne Spannschrauben und ohne Schweißmutter. Passende Spannschrauben siehe Kapitel "Anker und Kleinteile".

Technische Daten

Spannbereich
[mm]
max. zul.
Belastung (Zug)
31 - 72
4,0 kN
76 - 129
5,0 kN
133 - 303
10,0 kN
316 - 521
12,5 kN

Material:
Stahl, galvanisch verzinkt

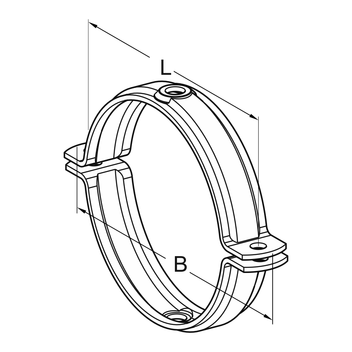

Spannbereich
[mm]
DNMaterial
b x s
[mm]
empfohlene
Spann-
schrauben
B
[mm]
L
[mm]
G
[kg]
Verp.
[Stück]
Artikel-
Nr.
31 - 351"30 x 2,5M8 x 2070,552,50,0950 113367
40 - 451 1/4"30 x 2,5M8 x 2082640,1050 113368
48 - 531 1/2"30 x 2,5M8 x 2090,572,50,1450 113369
54 - 5930 x 2,5M8 x 20101830,1650 113370
60 - 652"30 x 2,5M8 x 20108900,1850 113371
67 - 7230 x 2,5M8 x 20114960,1950 113372
76 - 812 1/2"30 x 3,0M10 x 301371150,2225 113373
82 - 8730 x 3,0M10 x 301431210,2325 113374
88 - 933"30 x 3,0M10 x 301491270,2425 113375
102 - 10830 x 3,0M10 x 301631410,2825 113376
110 - 1164"30 x 3,0M10 x 301711490,3025 113377
124 - 12930 x 3,0M10 x 301841620,3225 113378
133 - 14040 x 4,0M12 x 402101810,6510 113379
140 - 1485"40 x 4,0M12 x 402181890,6610 113380
149 - 15540 x 4,0M12 x 402251960,7210 113381
159 - 16540 x 4,0M12 x 402352060,7210 113382
167 - 1736"40 x 4,0M12 x 402432140,7610 113383
176 - 18440 x 4,0M12 x 452552260,8310 113384
188 - 19440 x 4,0M12 x 452652360,8410 113385
199 - 20540 x 4,0M12 x 452762470,8910 113386
207 - 21640 x 4,0M12 x 452872580,9310 113387
219 - 2258"40 x 4,0M12 x 452962670,9610 113388
244 - 25040 x 4,0M12 x 453212921,0210 113389
267 - 27310"40 x 4,0M12 x 453443151,1610 113390
278 - 28440 x 4,0M12 x 453553261,2010 113391
297 - 30340 x 4,0M12 x 453743451,2710 113392
316 - 32432450 x 5,0M16 x 604403902,10 1 103701
348 - 35635650 x 5,0M16 x 604714212,53 1 103729
360 - 36836850 x 5,0M16 x 604824322,54 1 103747
399 - 40740750 x 5,0M16 x 605204702,88 1 103765
411 - 41941970 x 6,0M16 x 605324824,84 1 103783
500 - 50850870 x 6,0M16 x 606195695,78 1 103808
513 - 52152170 x 6,0M16 x 606315815,67 1 103826
